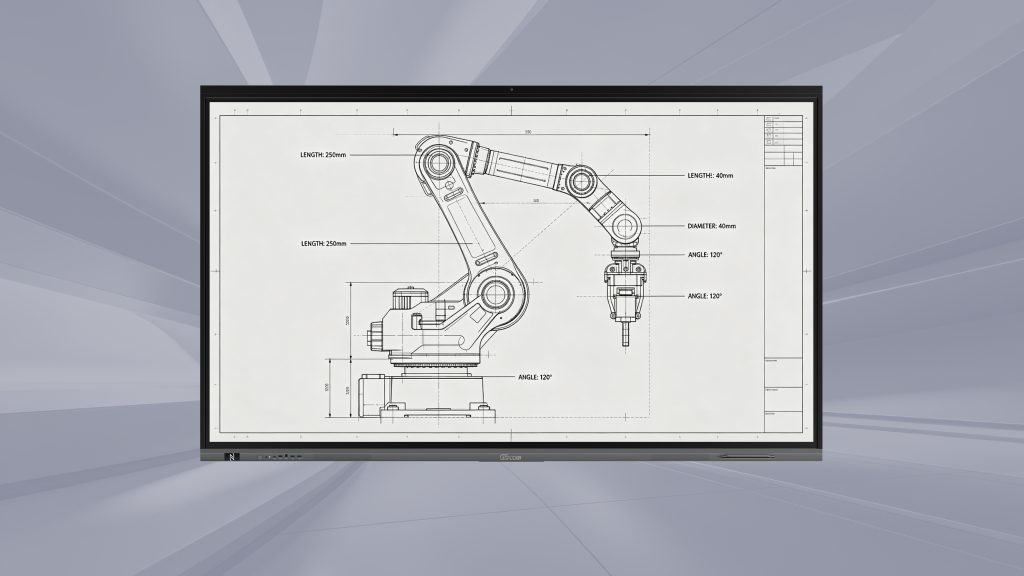

Interactive Smart Board

For Classrooms For Meeting Rooms

For Classrooms


For Meeting Rooms

Supports Teaching for Each Subject as below

EDU — Hybrid Classroom

Group Learning with competitions

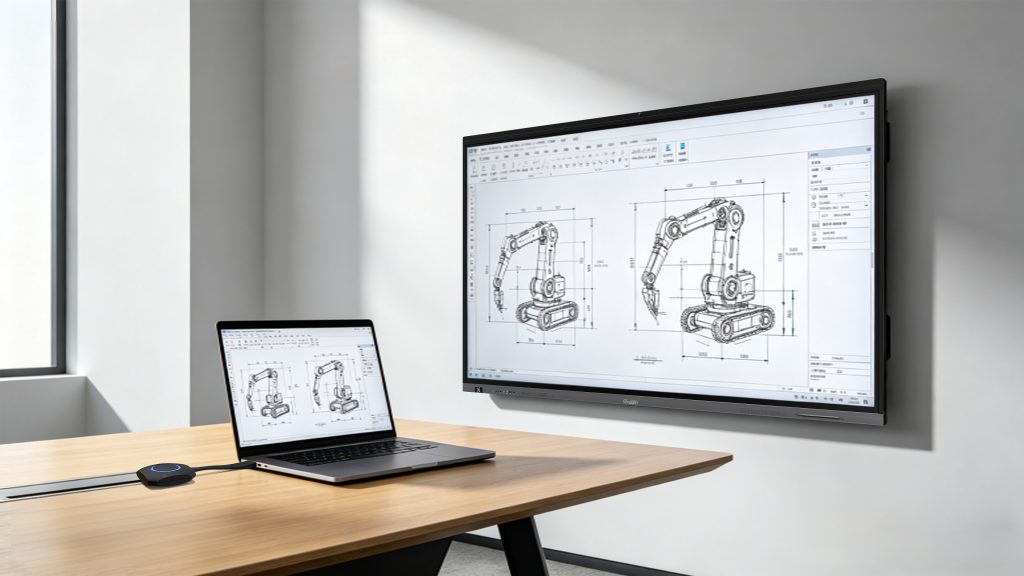

ScreenShare
Terminals with OS of IOS, Windows, Mac, Android, Chrome book are all supported. Splitted screens: 1 – 16 screens.

This function is widely used for both classrooms and meeting rooms
4K UHD Resolution & Anti-Glare Screen

Widely deployed for Meeting Rooms

Local team brainstorming
Video Conference

EDLA Certified by Google

SPECIFICATIONS

  • Sizes Available for selections: 65″,75″,86″,98″,110″
  • Back Light: Direct LED/DLED
  • Display Type: LCD
  • Resolution: 3840*2160 /UHD/4K
  • Aspect Ratio: 16:9
  • Contrast Ratio: 1200:1/5000:1
  • Colors: 1.07 billion colors/10 bit
  • Brightness: ≥350, 400, 450, 500 cd/m2
  • Viewing angle: 178° Horizontal
  • Glass hardness: 4mm thickness, Mohs-7 level
  • Glass surface: Anti-Glare
  • Touch Technology: IR Touch
  • Bonding Technology: Zero Bonding
  • Touch Points: Windows OS: 40/50. Android OS 20/40/50
  • Touch Solution: 32767*32767
  • Touch accuracy: ±1mm
  • Recognition: Finger or passive stylus
  • Response Rate: <8ms
  • Touch supported OS: Windows, Mac, Android, Chrome OS, Linux
  • Power Input Voltage: 90-264V AC/50/60HZ
  • Power Standby: ≤0.5W
  • Working Temperature: 0℃ ~ 40℃
  • Storage Temperature: -20℃ ~ 60℃
  • Working HUM: 10%~80%RH,Non-Condensing
  • Storage HUM: 10%~90% RH,Non-Condensing
  • Hotspot: YES
  • Wifi: Wi-Fi 6
  • Bluetooth: V5.2/ V5.4
  • OPS Slot: YES
  • Front Ports: USB-A 3.0 * 2/3, USB-B touch * 1, HDMI in 2.0 * 1, Type C* 1, LIGHT SENSOR*1
  • Optional Components to build in
  • 1. AI Camera, 48M / 13M
  • 2. Array mic, 8 array, 10m
  • 3. Air purifier

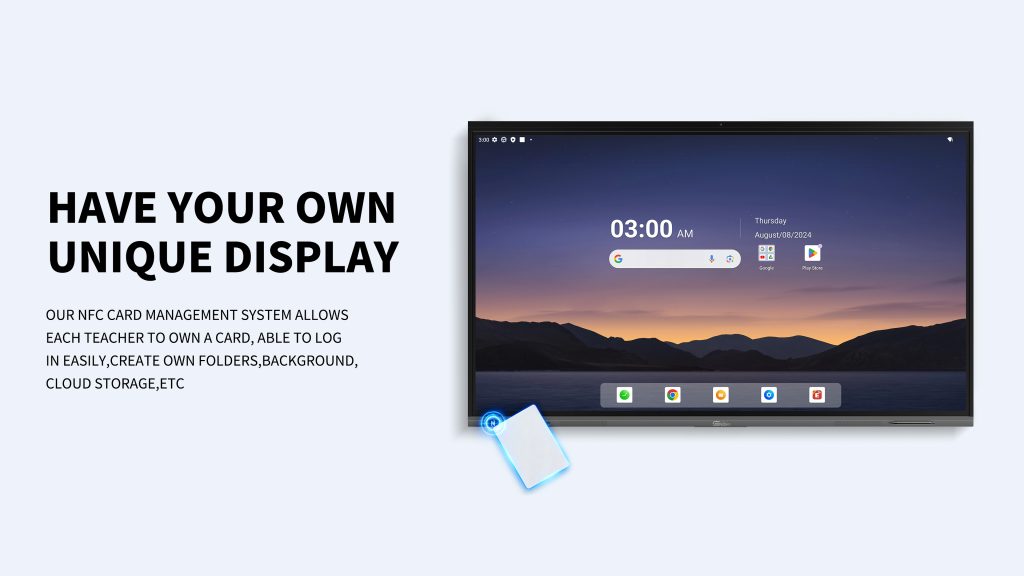

  • 4. NFC sensor
  • 5. Full function of front type c port
  • 6. Subwoofer 2.1 /2.2 channel

F series, with chipset 9679

  • Android 14.0
  • Cores: Quad-core A73*4, 1.5GHz
  • GPU: Mali G52 MC1(2EE) 650MHZ
  • RAM: 4GB / 8GB
  • ROM: 32GB / 128GB
  • Speaker: 16W/20W*2

Rear Ports

  • HDMI OUT*1
  • RJ45* 2
  • RS232* 1
  • VGA*1
  • AUDIO IN*1
  • TOUCH OUT*2 (USB2.0)
  • SPDIF OPTICAL OUT*1
  • TF CARD*1
  • MIC IN*1
  • LINE OUT*1 / EARPHONE *1
  • USB 3.0*1
  • DP IN*1
  • USB TYPE C *1
  • USB 2.0*1
  • HDMI IN*2

O series, with chipset 3576

  • Android 14.0
  • Cores: Octa-core,A72*4,2.2GHz+A53 *4, 1.8GHz
  • GPU: Mali G52 MC1(2EE) 650MHZ
  • RAM: 8GB / 16GB
  • ROM: 128GB / 256GB
  • Speaker: 16W/20W*2

Rear Ports

  • HDMI OUT*1
  • RJ45* 2
  • RS232* 1
  • TOUCH OUT*2 (USB2.0)
  • SPDIF OUT*1
  • TF CARD*1
  • MIC IN*1
  • LINE OUT*1 / EARPHONE *1
  • USB 3.0*2
  • DP IN*1
  • USB TYPE C *1
  • USB 2.0*1
  • HDMI IN*2

G series, with chipset 3588

  • Android 15.0
  • Cores: Octa-core,A76*4,2.4GHz+A55*4, 1.8GHz
  • GPU: ARM Mali-G610 MC4
  • RAM: 8GB / 16GB / 32GB
  • ROM: 128GB / 256GB / 512GB
  • Speaker: 16W/20W*2

Rear Ports

  • HDMI OUT*1
  • RJ45* 2
  • RS232* 1
  • VGA*1
  • AUDIO IN*1
  • TOUCH OUT*3 (USB3.0)
  • SPDIF OUT*1
  • TF CARD*1
  • MIC IN*1
  • LINE OUT*1 / EARPHONE *1
  • USB 3.0*3
  • DP IN*1
  • USB TYPE C Full function*1
  • USB TYPE C PD function*1
  • HDMI IN*3

Standard Package Accessories:

Stylus Pen * 2pcs, Remote control *1pcs, Power cable *1pcs, Wall mount kits*1, HDMI Cable*1, Touch Cable*1
